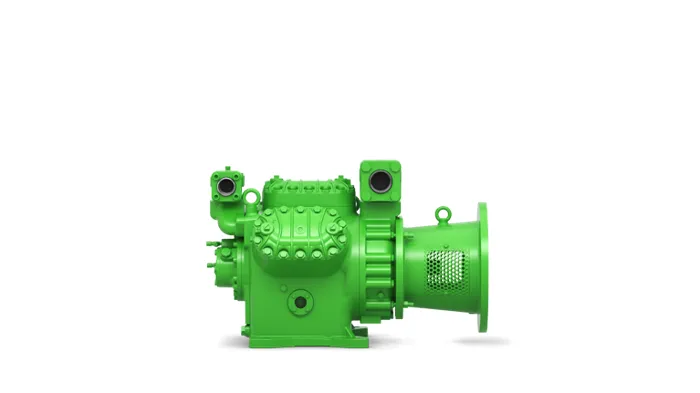

BITZER · abiertosW2NATechnical dataOpen Drive Reciprocating Compressors / // ".2" / // for NH₃ModelW2NAFamilyCompresores alternativos abiertosBefore confirming, check the nameplate and serial number.Exploded drawing and spare partsExploded drawing and spare parts →Included equipmentOil charge ∙ Details see Application Range Refrigeration Oil Recips · KC68 (mineral oil) for NH₃Oil heater · heater sleeveWater-cooled cylinder heads · for fresh waterOptions for this equipmentOil charge ∙ Details see Application Range Refrigeration Oil Recips · SHC226E (PAO) for NH₃Coupling housing for B3 / B5 IEC motors · GK2370 motor flange D250Coupling housing for B3 / B5 IEC motors · GK2380Coupling · pilot drilled bore for shaft D28 KK211 bore for shaft D38 bore for shaft D42Coupling · pilot drilled bore for shaft D28 KK211 bore for shaft D38 bore for shaft D42Coupling · pilot drilled bore for shaft D28 KK211 bore for shaft D38 bore for shaft D42Coupling · pilot drilled bore for shaft D28 KK211 bore for shaft D38 bore for shaft D42Coupling · bore for shaft D28 KK215 bore for shaft D38Coupling · bore for shaft D28 KK215 bore for shaft D38Compressor flywheel / pulleyDifferential oil pressure switch Delta-PII · 115 .. 230 V-1-50/60 HzDifferential oil pressure switch MP55A · 230/115 V-1-50/60 HzDifferential oil pressure switch Delta-PIIA · 115 .. 230 V-1-50/60 HzOil heater · 70 W, 230 VOil heater · 70 W, 115 VOil heater · 70 W, 24 VOil heater · 70 W, 400 VStart unloader - cylinder head with PTC sensor mounted - control valve enclosed - switching device SE-B2 included ∙ see position Discharge gas temperature sensor and switching device · coil for 230 V-1-50/60 HzStart unloader - cylinder head with PTC sensor mounted - control valve enclosed - switching device SE-B2 included ∙ see position Discharge gas temperature sensor and switching device · coil for 115 V-1-50/60 HzStart unloader - cylinder head with PTC sensor mounted - control valve enclosed - switching device SE-B2 included ∙ see position Discharge gas temperature sensor and switching device · coil for 24 V-1-50/60 HzStart unloader - cylinder head with PTC sensor mounted - control valve enclosed - switching device SE-B2 included ∙ see position Discharge gas temperature sensor and switching device · coil for 24 V-DCStart unloader - cylinder head prepared · ∙ without control valve ∙ without PTC sensor ∙ without switching deviceDischarge gas temperature sensor and switching device ∙ included in start unloader with control valve · PTC 140 and SE-B2, 230 V-50/60 HzDischarge gas temperature sensor and switching device ∙ included in start unloader with control valve · PTC 140 and SE-B2, 115 V-50/60 HzDischarge gas temperature sensor and switching device ∙ included in start unloader with control valve · PTC 140 and SE-B2, 24 V-50/60 HzDischarge gas temperature sensor and switching device ∙ included in start unloader with control valve · PTC 140 and SE-B2, 24 V-DCDischarge gas temperature sensor · PTC 140 ∙ without SE-B2 deviceWater-cooled cylinder heads · ∙ coated ∙ for seawaterConversion kit for marine applicationWarranty Extension per year · details see Warranty Extension
