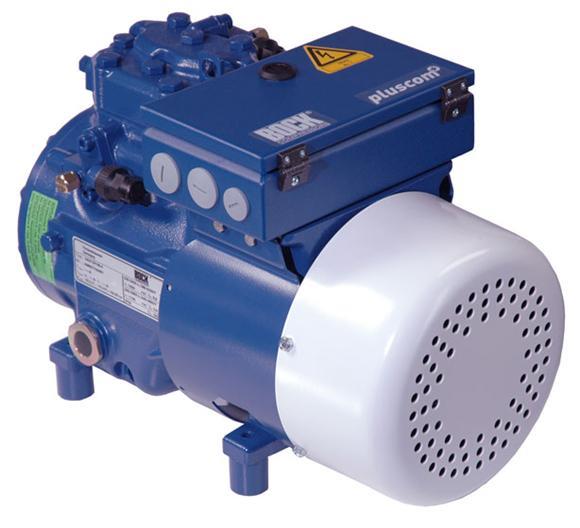

HAX12P/75-4
Technical data
Compresores alternativos
- Model
- HAX12P/75-4
- Displacement 50/60 Hz (1450/1740 ¹/min)
- 6,70 / 8,10 m³/h
- Electrical supply
- Electrical supply to be confirmed from the nameplate.
Before confirming, check the nameplate and serial number.
Exploded drawing and spare parts
Additional technical information
- Model
- HAX12P/75-4
- Family
- HA · Refrigerados por aire · Modelos anteriores
- Number of cylinders / Bore / Stroke
- 2 / 38 mm / 34 mm
- Voltage 1)
- 220-240V Δ / 380-420V Y -3- 50Hz
- Max. working current 2)
- 5.5 / 3.2 A
- Max. power consumption 2)
- 1.6 kW
- Starting current (rotor blocked) 2)
- 40.0 / 23.0 A
- Motor protection
- INT69 G
- Protection terminal box / HA-fan
- IP 66 / IP 44
- Voltage HA-fan
- 230 V - 1 - 50/60 Hz, 40 W
- Weight
- 53 kg
- Max. permissible overpressure (g) (LP/HP) 3)
- 19 / 28 bar
- Connection suction line SV
- 12 mm - 1/2 "
- Connection discharge line DV
- 12 mm - 1/2 "
- Lubrication
- Oil pump
- Oil type R134a, R404A, R407A/C/F, R448A, R449A, R450A, R513A
- BOCKlub E55
- Oil type R22
- BOCKlub A46
- Oil charge
- 0,8 Ltr.
- Dimensions Length / Width / Height
- 440 / 220 / 315 mm
- Voltage
- 400 V
