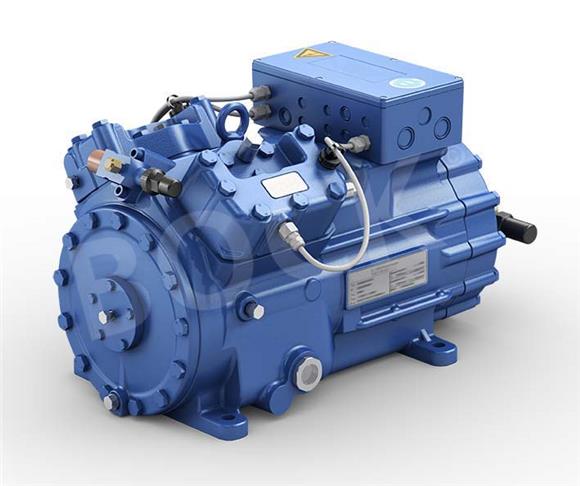

HGX34e/255-4 S CO2
Technical data
Compresores alternativos
- Model
- HGX34e/255-4 S CO2
- Displacement 50/60 Hz (1450/1740 ¹/min)
- 22,30 / 26,80 m³/h
- Electrical supply
- Dual frequency · 50/60 HzStandard motor · Three-phase50 Hz380–420 V Y / 220–240 V Δ60 Hz440–480 V Y / 265–290 V Δ
Before confirming, check the nameplate and serial number.
Exploded drawing and spare parts
Additional technical information
- Model
- HGX34e/255-4 S CO2
- Family
- HG · CO₂ subcrítico
- Number of cylinders / Bore / Stroke
- 4 / 55 mm / 27 mm
- Voltage 1)
- 220-240V Δ / 380-420V Y -3- 50Hz
- Max. working current 2)
- 44.8 / 25.9 A
- Max. power consumption 2)
- 15.8 kW
- Starting current (rotor blocked) 2)
- 178.0 / 103.0 A
- Motor protection
- INT69 G
- Protection terminal box
- IP 66
- Weight
- 104 kg
- Frequency range 3)
- 25 - 70 Hz
- Max. permissible overpressure (g) (LP/HP) 4)
- 40 / 55 bar
- Connection suction line SV
- 28 mm - 1 1/8 "
- Connection discharge line DV
- 22 mm - 7/8 "
- Lubrication
- Oil pump
- Oil type R744
- BOCKlub E85
- Oil charge
- 1,3 Ltr.
- Dimensions Length / Width / Height
- 572 / 318 / 318 mm
- Sound power level L WA 5)
- 72 db(A) @ -35 °C / -5 °C / 10 K
- Sound pressure level L pA 5)
- 60 db(A) @ -35 °C / -5 °C / 10 K
- Voltage
- 400 V
