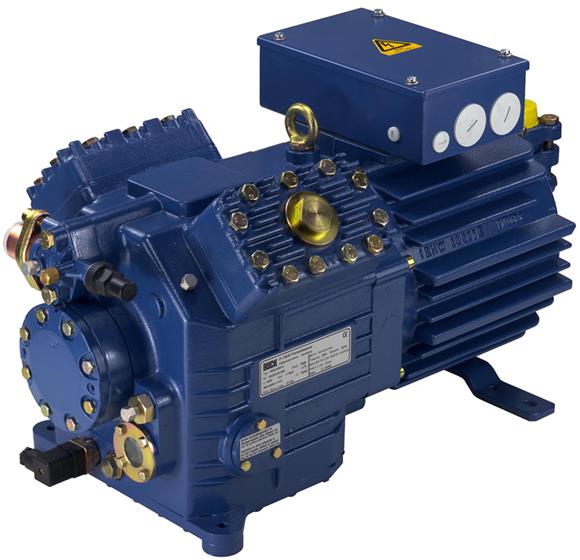

HGX4/310-4
Technical data
Compresores alternativos
- Model
- HGX4/310-4
- Displacement 50/60 Hz (1450/1740 ¹/min)
- 27,10 / 32,50 m³/h
- Electrical supply
- Electrical supply to be confirmed from the nameplate.
Before confirming, check the nameplate and serial number.
Exploded drawing and spare parts
Additional technical information
- Model
- HGX4/310-4
- Family
- HG · Refrigerados por gas de aspiración · Modelos anteriores
- Voltage 1)
- 380-420V Y/YY -3- 50Hz PW
- Winding divided into
- 66% / 33%
- Max. working current 2)
- 16.0 A
- Max. power consumption 2)
- 10.0 kW
- Starting current (rotor blocked) 2)
- 50.0 / 65.0 A
- Motor protection
- MP10
- Protection terminal box
- IP 65
- Weight
- 148 kg
- Max. permissible overpressure (g) (LP/HP) 3)
- 19 / 28 bar
- Connection suction line SV
- 28 mm - 1 1/8 "
- Connection discharge line DV
- 22 mm - 7/8 "
- Lubrication
- Oil pump
- Oil type R134a, R404A, R407A/C/F, R448A, R449A, R450A, R513A
- BOCKlub E55
- Oil type R22
- BOCKlub A46
- Oil charge
- 2,7 Ltr.
- Oil sump heater
- 230 V - 1 - 50/60 Hz, 80 W
- Dimensions Length / Width / Height
- 685 / 330 / 410 mm
- Voltage
- 400 V
