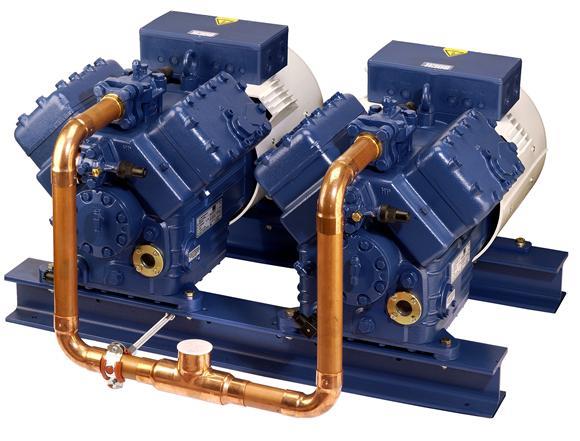

DHAX5/725-4
Technical data
Compresores alternativos
- Model
- DHAX5/725-4
- Displacement 50/60 Hz (1450/1740 ¹/min)
- 2 x 62,90 / 2 x 75,50 m³/h
- Electrical supply
- Electrical supply to be confirmed from the nameplate.
Before confirming, check the nameplate and serial number.
Exploded drawing and spare parts
Additional technical information
- Model
- DHAX5/725-4
- Family
- DHA · Compresores dúplex · Modelos anteriores
- Number of cylinders / Bore / Stroke
- 2 x 4 / 70 mm / 47 mm
- Voltage 1)
- 380-420V Y/YY -3- 50Hz PW
- Winding divided into
- 66% / 33%
- Max. working current 2)
- 2 x 24.0 A
- Max. power consumption 2)
- 2 x 12.5 kW
- Starting current (rotor blocked) 2)
- 2 x 107.0 / 140.0 A
- Motor protection
- MP10
- Protection terminal box / HA-fan
- IP 65 / IP 44
- Voltage HA-fan
- 230 V - 1 - 50/60 Hz, 140 W
- Weight
- 449 kg
- Max. permissible overpressure (g) (LP/HP) 3)
- 19 / 28 bar
- Connection suction line SL
- 54 mm - 2 1/8 "
- Connection discharge line DV
- 2 x 28 mm - 1 1/8 "
- Lubrication
- Oil pump
- Oil type R134a, R404A, R407A/C/F, R448A, R449A, R450A, R513A
- BOCKlub E55
- Oil type R22
- BOCKlub A46
- Oil charge
- 2 x 4,5 Ltr.
- Oil sump heater
- 2 x 230 V - 1 - 50/60 Hz, 2 x 140 W
- Dimensions Length / Width / Height
- 925 / 970 / 530 mm
- Voltage
- 400 V
