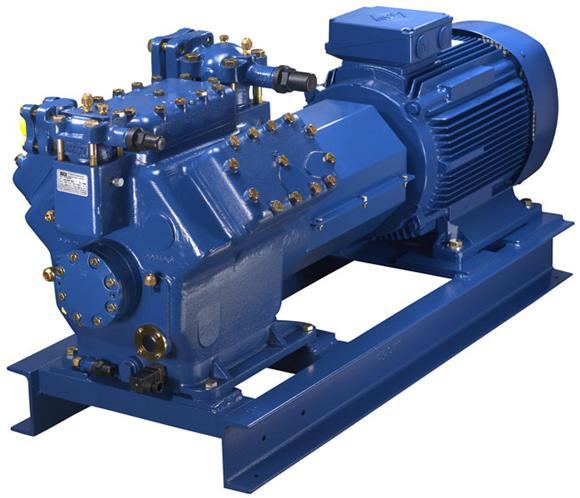

FDKX16/2051
Technical data
Compresores alternativos
- Model
- FDKX16/2051
- Family
- FDK · Unidades de compresión · Modelos anteriores
- Electrical supply
- Electrical supply to be confirmed from the nameplate.
Before confirming, check the nameplate and serial number.
Exploded drawing and spare parts
Additional technical information
- Model
- FDKX16/2051
- Family
- FDK · Unidades de compresión · Modelos anteriores
- Number of cylinders / Bore / Stroke
- 6 / 80 mm / 68 mm
- Weight 1)
- 286 kg
- Permissible range of rotation speeds
- 700 - 1800 ¹/min
- Max. permissible overpressure (g) (LP/HP) 2)
- 19 / 28 bar
- Connection suction line SV
- 54 mm - 2 1/8 "
- Connection discharge line DV
- 42 mm - 1 5/8 "
- Lubrication
- Oil pump
- Oil type R134a, R404A, R407A/C/F, R448A, R449A, R450A, R513A
- BOCKlub E55
- Oil type R22
- BOCKlub A46
- Oil charge
- 5,0 Ltr.
- Oil sump heater
- 230 V - 1 - 50/60 Hz, 140 W
- Oil service valve
- 7/16" UNF
- Coupling
- WK 190.6
