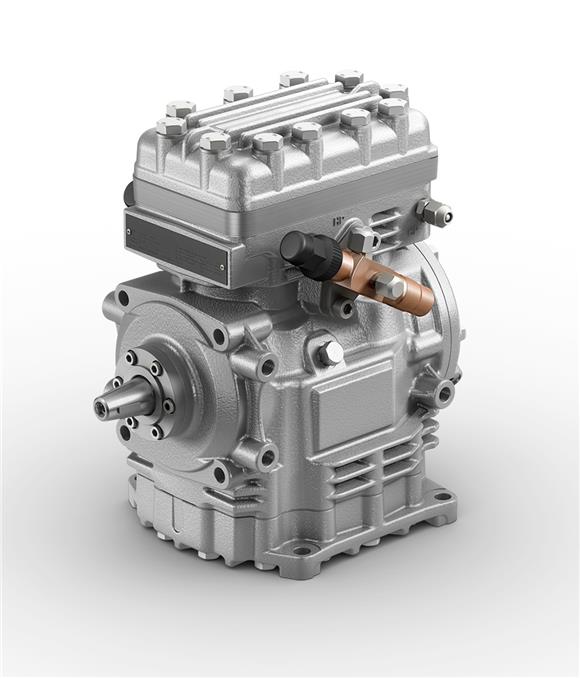

FKX20/120 N
Technical data
Compresores alternativos
- Model
- FKX20/120 N
- Displacement
- 118 cm³
- Electrical supply
- Electrical supply to be confirmed from the nameplate.
- Displacement (1450/3000 ¹/min)
- 10,30 / 21,20 m³/h
Before confirming, check the nameplate and serial number.
Exploded drawing and spare parts
Additional technical information
- Model
- FKX20/120 N
- Family
- FK · Climatización de autobuses y trenes · Modelos anteriores
- Number of cylinders / Bore / Stroke
- 2 / 50 mm / 30 mm
- Mass moment of inertia
- 0,0013 kgm²
- Weight
- 15 kg
- Permissible range of rotation speeds R134a 1)
- 500 - 3000 ¹/min
- Max. permissible overpressure (g) (LP/HP) 2)
- 19 / 28 bar
- Connection suction line SV
- 16 mm - 5/8 "
- Connection discharge line DV
- 16 mm - 5/8 "
- Lubrication
- Oil pump
- Oil type R134a, R404A, R407A/C/F, R448A, R449A, R450A, R513A
- BOCKlub E55
- Oil charge
- 0,7 Ltr.
- Dimensions Length / Width / Height
- 265 / 215 / 271 mm
