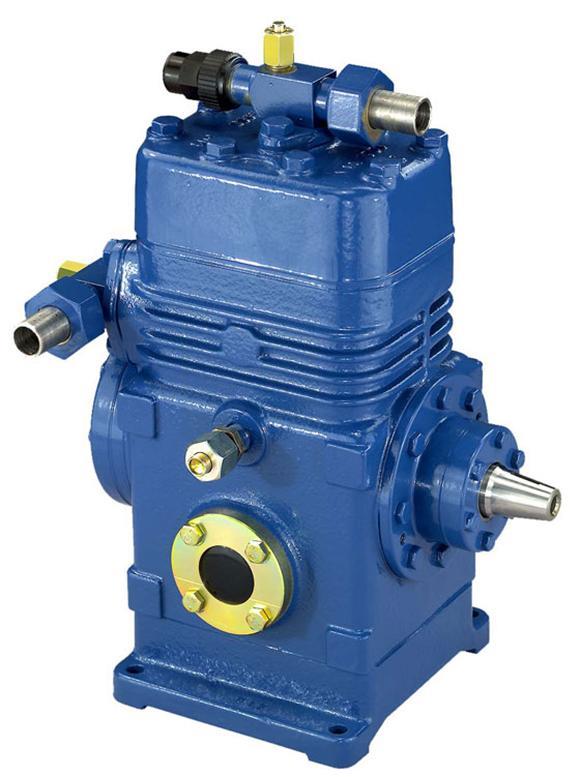

FX2
Technical data
Compresores abiertos
- Model
- FX2
- Displacement (1450/1740 ¹/min)
- 10,50 / 12,60 m³/h
- Electrical supply
- Electrical supply to be confirmed from the nameplate.
Before confirming, check the nameplate and serial number.
Exploded drawing and spare parts
Additional technical information
- Model
- FX2
- Family
- F · Compresores abiertos
- Number of cylinders / Bore / Stroke
- 2 / 45 mm / 38 mm
- Mass moment of inertia
- 0,0005 kgm²
- Weight
- 18 kg
- Permissible range of rotation speeds
- 960 - 1800 ¹/min
- Max. permissible overpressure (g) (LP/HP) 1)
- 19 / 28 bar
- Connection suction line SV
- 16 mm - 5/8 "
- Connection discharge line DV
- 16 mm - 5/8 "
- Lubrication
- Oil pump
- Oil type R134a, R404A, R407A/C/F, R448A, R449A, R450A, R513A
- BOCKlub E55
- Oil type R22
- BOCKlub A46
- Oil charge
- 0,7 Ltr.
- Dimensions Length / Width / Height
- 255 / 152 / 340 mm
