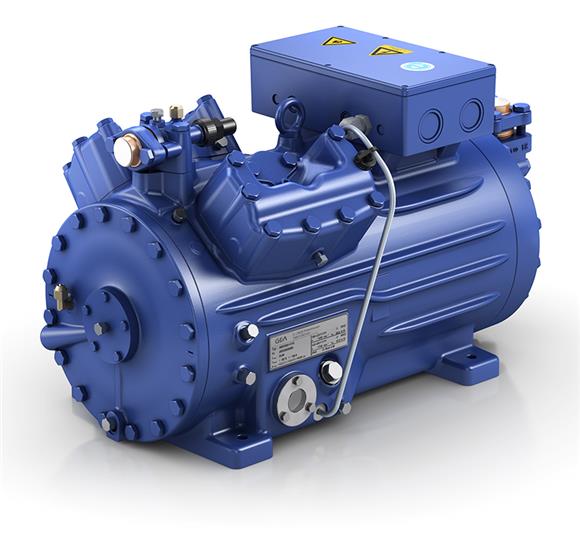

HG44e/475-4 HC
Technical data
Compresores alternativos
- Model
- HG44e/475-4 HC
- Displacement 50/60 Hz (1450/1740 ¹/min)
- 41,30 / 49,60 m³/h
- Electrical supply
- Electrical supply to be confirmed from the nameplate.
Before confirming, check the nameplate and serial number.
Exploded drawing and spare parts
Additional technical information
- Model
- HG44e/475-4 HC
- Family
- HG · Hidrocarburos · Modelos anteriores
- Number of cylinders / Bore / Stroke
- 4 / 55 mm / 50 mm
- Voltage 1)
- 380-420V Y/YY -3- 50Hz PW
- Winding divided into
- 70% / 30%
- Max. working current 2)
- 19.0 A
- Max. power consumption 2)
- 11.0 kW
- Starting current (rotor blocked) 2)
- 83.0 / 109.0 A
- Motor protection
- INT69 G
- Protection terminal box
- IP 65
- Weight
- 164 kg
- Max. permissible overpressure (g) (LP/HP) 3)
- 19 / 28 bar
- Connection suction line SV
- 35 mm - 1 3/8 "
- Connection discharge line DV
- 28 mm - 1 1/8 "
- Lubrication
- Oil pump
- Oil type R290, R1270
- RFL 68-EP
- Oil charge
- 2,3 Ltr.
- Oil sump heater
- 230 V - 1 - 50/60 Hz, 160 W
- Dimensions Length / Width / Height
- 650 / 360 / 385 mm
- Voltage
- 400 V
