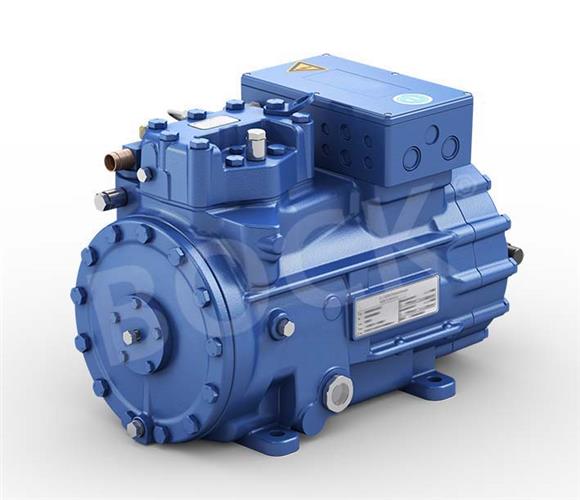

HGX22e/105-4 S CO2
Technical data
Compresores alternativos
- Model
- HGX22e/105-4 S CO2
- Displacement 50/60 Hz (1450/1740 ¹/min)
- 9,20 / 11,00 m³/h
- Electrical supply
- Dual frequency · 50/60 HzStandard motor · Three-phase50 Hz380–420 V Y / 220–240 V Δ60 Hz440–480 V Y / 265–290 V Δ
Before confirming, check the nameplate and serial number.
Exploded drawing and spare parts
Additional technical information
- Model
- HGX22e/105-4 S CO2
- Family
- HG · CO₂ subcrítico · Modelos anteriores
- Number of cylinders / Bore / Stroke
- 2 / 50 mm / 27 mm
- Voltage 1)
- 220-240V Δ / 380-420V Y -3- 50Hz
- Max. working current 2)
- 18.5 / 10.7 A
- Max. power consumption 2)
- 6.4 kW
- Starting current (rotor blocked) 2)
- 111.0 / 64.0 A
- Motor protection
- INT69 G
- Protection terminal box
- IP 66
- Weight
- 83 kg
- Max. permissible overpressure (g) (LP/HP) 3)
- 40 / 55 bar
- Connection suction line SV
- 22 mm - 7/8 "
- Connection discharge line DV
- 16 mm - 5/8 "
- Lubrication
- Oil pump
- Oil type R744
- BOCKlub E85
- Oil charge
- 1,0 Ltr.
- Dimensions Length / Width / Height
- 505 / 240 / 330 mm
- Voltage
- 400 V
