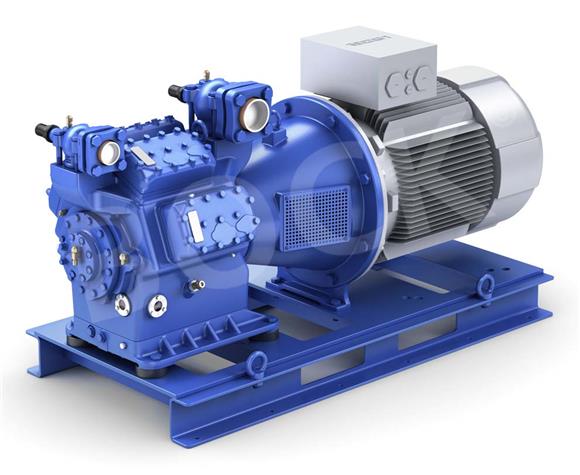

SFDX88/3235
Technical data
Compresores alternativos
- Model
- SFDX88/3235
- Displacement (1450/1740 ¹/min)
- 281,0 / 338,0 m³/h
- Electrical supply
- Electrical supply to be confirmed from the nameplate.
Before confirming, check the nameplate and serial number.
Exploded drawing and spare parts
Additional technical information
- Model
- SFDX88/3235
- Family
- SFD · Unidades de compresión · Modelos anteriores
- Number of cylinders / Bore / Stroke
- 8 / 87 mm / 68 mm
- Mass moment of inertia
- 0,0395 kgm²
- Weight
- 484 kg
- Permissible range of rotation speeds
- 500 - 1800 ¹/min
- Max. permissible overpressure (g) (LP/HP) 1)
- 19 / 28 bar
- Connection suction line SV
- 76 mm - 3 1/8 "
- Connection discharge line DV
- 54 mm - 2 1/8 "
- Lubrication
- Oil pump
- Oil type R134a, R404A, R407A/C/F, R448A, R449A, R450A, R513A
- BOCKlub E55
- Oil type R22
- BOCKlub A46
- Oil charge
- 8,6 Ltr.
- Coupling
- BoWex 80-225, HEW COMPACT
