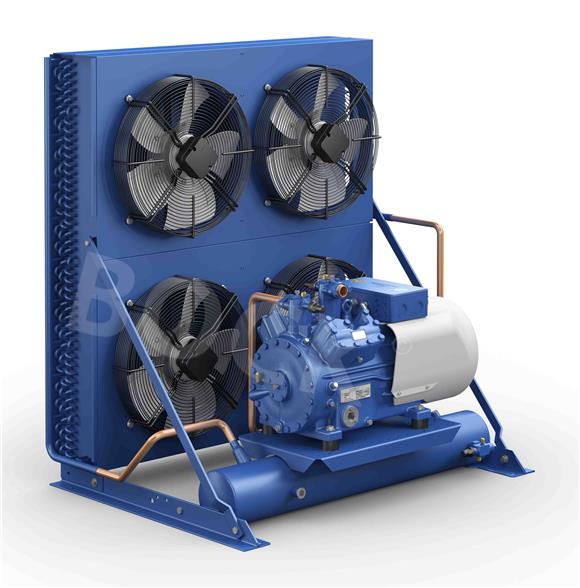

SHAX44e/475-4 L

Additional technical information

Model

SHAX44e/475-4 L

Family

SHA L · Unidades condensadoras

Number of cylinders / Bore / Stroke

4 / 55 mm / 50 mm

Voltage 1)

380-420V Y/YY -3- 50Hz PW

Winding divided into

50% / 50%

Max. working current 2)

15.2 A

Max. power consumption 2)

7.6 kW

Starting current (rotor blocked) 2)

87.0 / 149.0 A

Motor protection

INT69 G

Protection terminal box / HA-fan

IP 66 / IP 44

Voltage HA-fan

230 V - 1 - 50/60 Hz, 140 W

Weight

264 kg

Frequency range 3)

25 - 70 Hz

Max. permissible overpressure (g) (LP/HP) 4)

19 / 28 bar

Connection suction line SV

35 mm - 1 3/8 "

Connection discharge line DV

22 mm - 7/8 "

Connection liqiud outlet line FLA

16 mm - 5/8 "

Connection liqiud outlet line FLE

16 mm - 5/8 "

Lubrication

Oil pump

Oil type R134a, R404A, R407A/C/F, R448A, R449A, R450A, R513A

BOCKlub E55

Oil type R22

BOCKlub A46

Oil charge

2,7 Ltr.

Oil sump heater

230 V - 1 - 50/60 Hz, 160 W

Dimensions of unit Length / Width / Height

1224 / 1043 / 796 mm

Number fan motors

2

Voltage

230 V - 1 - 50/60 Hz

Max. working current 50/60 Hz

2 x 2,60 / 3,50 A

Max. power consumption 50/60 Hz

2 x 550 / 800 W

Air flow 50/60 Hz

10400 / 12600 m³/h

Receiver content

14.00 Ltr.

Max. refrigerant charge R134a 5)

15,5 kg

R404A / R507 5)

13,5 kg

R407C / R407F 5)

14,6 / 14,3 kg

R448A / R449A 5)

14,0 / 14,1 kg

R22 5)

15,3 kg

Volume condenser

10,9 Ltr.

Sound power level L WA 6)

83 dB(A)

Sound pressure level L pA 6)

68 dB(A) @ 1 m
