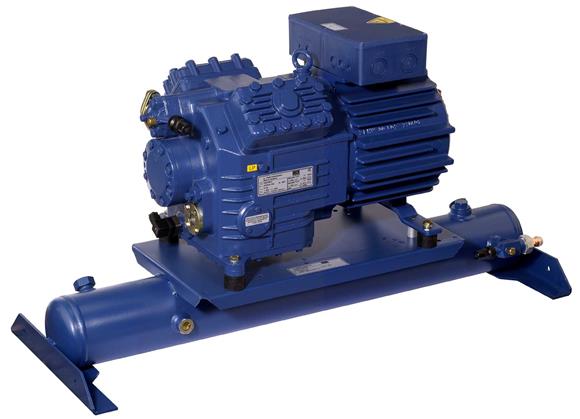

SHGX4/555-4 RU
Technical data
Compresores alternativos
- Model
- SHGX4/555-4 RU
- Displacement 50/60 Hz (1450/1740 ¹/min)
- 48,20 / 57,80 m³/h
- Electrical supply
- Electrical supply to be confirmed from the nameplate.
Before confirming, check the nameplate and serial number.
Exploded drawing and spare parts
Additional technical information
- Model
- SHGX4/555-4 RU
- Family
- SHG RU · Unidades con recipiente · Modelos anteriores
- Number of cylinders / Bore / Stroke
- 4 / 60 mm / 49 mm
- Voltage 1)
- 380-420V Y/YY -3- 50Hz PW
- Winding divided into
- 66% / 33%
- Max. working current 2)
- 24.0 A
- Max. power consumption 2)
- 14.1 kW
- Starting current (rotor blocked) 2)
- 82.0 / 107.0 A
- Motor protection
- MP10
- Protection terminal box
- IP 65
- Weight
- 173 kg
- Max. permissible overpressure (g) (LP/HP) 3)
- 19 / 28 bar
- Connection suction line SV
- 35 mm - 1 3/8 "
- Connection discharge line DV
- 28 mm - 1 1/8 "
- Connection liqiud outlet line FLA
- 16 mm - 5/8 "
- Lubrication
- Oil pump
- Oil type R134a, R404A, R407A/C/F, R448A, R449A, R450A, R513A
- BOCKlub E55
- Oil type R22
- BOCKlub A46
- Oil charge
- 2,7 Ltr.
- Oil sump heater
- 230 V - 1 - 50/60 Hz, 80 W
- Dimensions of unit Length / Width / Height
- 1090 / 400 / 600 mm
- Receiver content
- 14.50 Ltr.
- Max. refrigerant charge R134a 4)
- 15,9 kg
- R404A / R507 4)
- 14,0 kg
- R407C / R407F 4)
- 15,1 / 14,9 kg
- R22 4)
- 15,8 kg
- Voltage
- 400 V
